MVR Technology

Product Structure

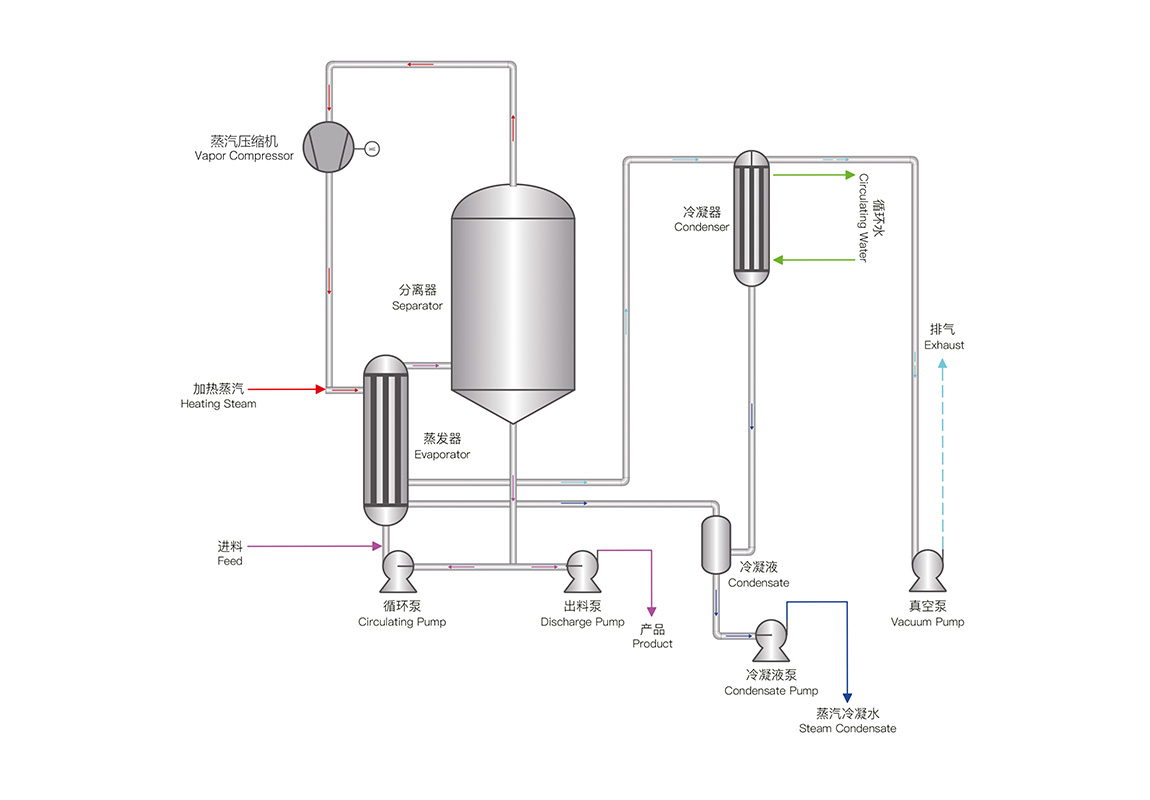

It consists of an evaporator, steam compressor, preheater, separator, vacuum system and intelligent control system, and adopts efficient heat exchange tube bundle and automated control design.

Operating Principle

Preheated material evaporates in heat exchanger tubes. Secondary vapor is compressed to higher temperature/pressure by a steam compressor and recycled as the primary heat source, forming a closed-loop system. After initial steam startup, continuous operation relies on compressor-driven energy recovery, drastically reducing energy use. Concentrate discharges from the bottom while condensate is reclaimed, achieving near-zero waste emission.
